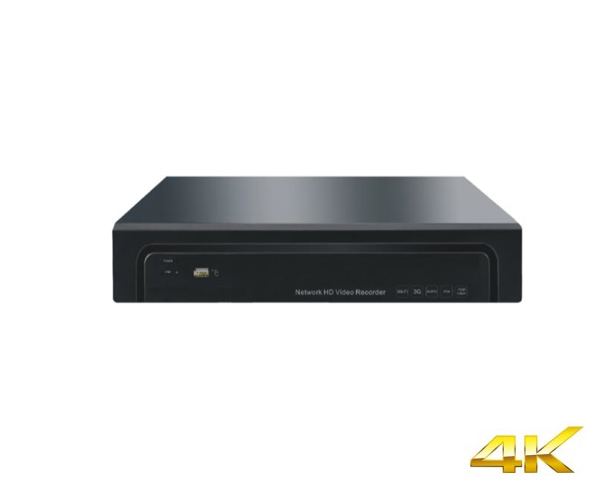

NVR-2004HGK-P4 / 2008HGK-P8
Products
NVR-2004HGK-P4 / 2008HGK-P8
Linux Network Video Recorder
● Support ONVIF, 4K HD Network Video Preview, Storage and Playback
● Support H.265, H.264，IPC Centralize Management includes IPC Parameter Configuration, Information I/O, Audio Intercom and Upgrade, etc.
● HDMI Output Up To 3840×2160; Brand-new UI Interface, One Key To Open Recording;
● Support Instant Playback, Specified Channel Video Playback Under The Preview Screen Without Affecting Other channels;
● Support Max 4 Sync. Playback, Multi Channels Playback;
● Support Event, Query, Playback Recording File; Double Users Certification
● Support HDD Quota and Group Storage Mode, Allocate Different Saving Spaces / Cycle of Recording For Different Channels;
● Support ONVIF, 4K HD Network Video Preview, Storage and Playback
● Support H.265, H.264，IPC Centralize Management includes IPC Parameter Configuration, Information I/O, Audio Intercom and Upgrade, etc.
● HDMI Output Up To 3840×2160; Brand-new UI Interface, One Key To Open Recording;
● Support Instant Playback, Specified Channel Video Playback Under The Preview Screen Without Affecting Other channels;
● Support Max 4 Sync. Playback, Multi Channels Playback;
● Support Event, Query, Playback Recording File; Double Users Certification
● Support HDD Quota and Group Storage Mode, Allocate Different Saving Spaces / Cycle of Recording For Different Channels;
SPECIFICATION
|
Model No. |
NVR-2004HGK-P4 |
NVR-2008HGK-P4 |
|
|
Operation System |
LINUX O.S |
||
|
Video & Audio Input |
Network Video Input |
4CH Network Compress Video Input |
8CH Network Compress Video Input |
|
Audio Output |
IPC Composite Audio Input |
||
|
Video & Audio Output |
HDMI Output |
1CH, Resolution: 4K(3840*2160)/30Hz, (1920*1080)/60Hz |
|
|
Audio Output |
1*RCA Port |
||
|
Video & Audio Encode |
Video Standard |
H.265/H.264/MJPEG |
|
|
Recording Resolution |
8M/5M/3M/1080P/720P |
||
|
Decode Playback |
Up To 4CH 1080P Playback |
||
|
Recording |
Record/Snapshot |
Manual Recording, Timer Recording, Event Recording, Motion Detection Recording, Alarm Recording |
|
|
Playback |
Instant Playback, Routine Playback, Event Playback, External File Playback, Log Playback |
||
|
Backup |
Routine Backup, Event Backup, Record Cutting Backup |
||
|
HDD |
HDD Port |
2*SATA Ports |
|
|
Max Capacity |
Each Port supports Max. 6TB HDD |
||
|
External |
Network Port |
1*RJ45 |
|
|
USB Port |
3 Ports(1*USB2.0 Port in Front, 2*USB2.0 Ports at Back-end) |
||
|
口Serial Port |
1*RS-485 |
||
|
Alarm Input |
4CH Alarm Input, Low Electrical Level Effective, Green Connection Line Port |
||
|
Alarm Output |
1CH Alarm Output, Relay Touch (1A@24VDC), NO, NC can Program |
||
|
POE |
Port |
4* Independent 10M/100Mbps Self-adaptive Ethernet Port |
8* Independent 10M/100Mbps Self-adaptive Ethernet Port |
|
Input Power Consumption |
52W |
120W |
|
|
Standard |
IEEE802.3af |
||
|
Network |
Network Protocol |
ONVIF(2.4), IPv4, UPnP(Plug & Play), NTP(Network Timing), SADP(Auto Search IP Address), PPPoE(Dial-up), DHCP(Auto Get IP Address), etc. |
|
|
Others |
Mobile Surveillance |
Support |
|
|
Power Supply |
48V 2A |
48V 2.5A |
|
|
Power Consumption (Without HDD) |
＜10W(Without HDD) |
||
|
Work Temperature |
-10℃～+55℃ |
||
|
Work Humidity |
10％～90％ |
||
|
Dimension |
NVR: 1.5U, 350mm(W)*240mm(L)*68mm(H); Packing: 414mm*370mm*134mm |
||
|
Weight(Without HDD) |
N.W: 1.7KG; With Packing: 2.9KG |
||
|
Carton |
5pcs/Carton; Dimension: 675mm*425mm*385mm; Weight: 15.3 KG |
||
|
Installation |
Desktop Installation |
||
