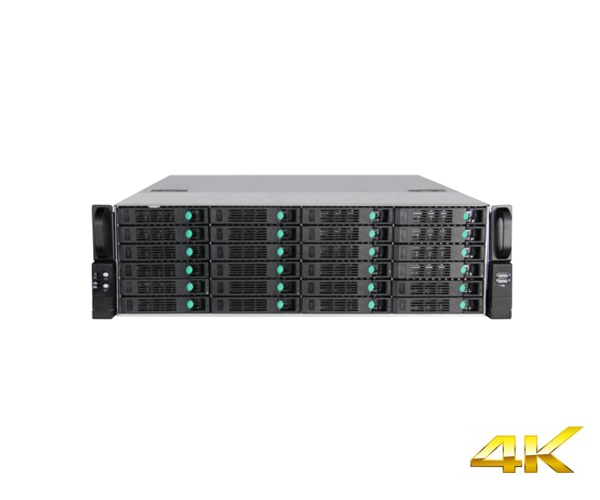

NVR-8000HGK-R24MNVR-8000HGK-R24M

NVR-8000HGK-R24M

Linux Network Video Recorder


● Compatiable With ONVIF Standards and Multiple Mainstream Brand HD IPC
● Support ONVIF, 4K HD Network Video Preview, Storage and Playback
● Support Instant Playback, Specified Channel Video Playback Under The Preview Screen Without Affecting Other channels;
● 24*SATA+1* eSATA HDD Port


SPECIFICATION

Model No.

NVR-8000HGK-R24M

Video & Audio Input

Network Video Input

128ch Network Compressed Video Input (Compatible with 4K/ below 4K Resolution )

Audio Input

IPC Composite Audio Input

Video & Audio Output

HDMI Output

2ch HDMI,2ch VGA, resolution:3840×2160/30Hz,1920×1080/60Hz

Audio Output

1*RCA Port

Video & Audio Encode

Video Standard

H.265/H.264 /MJPEG

Recording Resolution

8M/5M/3M/1080P/720P

Decode Playback

Up To 16ch 1080P Playback

Recording

Record/Snapshot

Manual Recording, Timer Recording, Event Recording, Motion Detection Recording, Alarm Recording

Playback

Instant Playback, Routine Playback, Event Playback, External File Playback, Log Playback

Backup

Routine Backup, Event Backup, Record Cutting Backup

HDD

HDD Port

24*SATA+1*eSATA HDD port

Max Capacity

Each Port supports Max. 6TB HDD

External

Network Port

2* RJ45

USB Port

3 Ports(1*USB2.0 Port in Front, 2*USB2.0 Ports at Back-end)

Serial Port

Full Duplex Standard 485 Interface

Alarm Input

16CH Alarm Input, Low Electrical Level Effective, Green Connection Line Port

Alarm Output

8CH Alarm Output, Relay Touch (1A@24VDC), NO, NC can Program

Network

Network Protocol

ONVIF(2.4), IPv4, UPnP(Plug & Play), NTP(Network Timing), SADP(Auto Search IP Address), PPPoE(Dial-up), DHCP( Auto Get IP Address), etc.

 Others

Power Supply

ATX110-220V   400W 50-60Hz

Power Consumption (Without HDD)

≤50W(without HDD)

Work Temperature

-10℃~+55℃

Work Humidity

10%~90%

Dimension

NVR: 431.5mm×600mm×177.5mm
Packing: 720mmX545mmX280mm

Weight(Without HDD)

N.W: 23KG

Carton

1pcs /carton   Dimension:752mmX577mmX312mm

Installation

Desktop Installation
