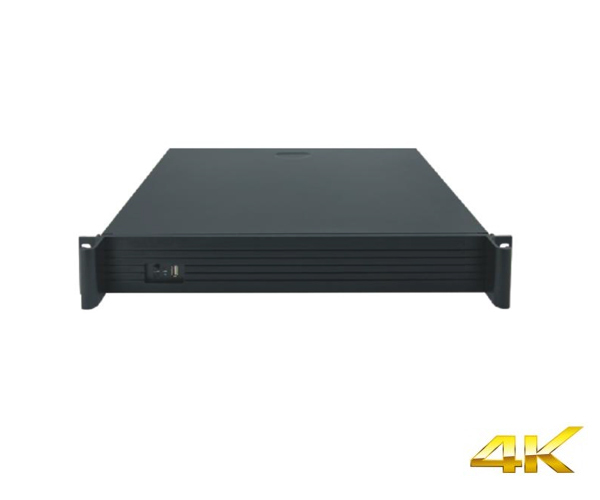

NVR-4136HGK

Linux Network Video Recorder


● The Preview Screen can be changed at will, The Image Position changed, The Physical Address will not be changed;
● Support 15X Digital Enlarge, Dragging any Enlarged Image by Mouse(Preview/Playback);
● Support Instant Capture, and set a Separate-Area to save the Screenshot in the HDD ;
● Recording Playback is shown by Time Bar, Different Colors displays Different Recording Type, Fast and Easy for checking the Recording;
● Support USB Disk Backup File Playback on Host Directly(Backup can be accurate to the seconds);
● HDD Sequence Writing Method, start writing Data from zero tracks, Enhance the Efficiency of HDD Read and Write;


SPECIFICATION

Model No.

NVR-4136HGK

Operating System

Embedded Linux Operating System

Image Coding Control

Image Coding Quality can be adjusted, VBR / CBR Optional

Dual Stream

Each Channel can be set

Video Standard

H.265/H.264

Image Quality

4K(3840*2160)/4MP(2560*1600)/1080P(1920×1080) /
960P(1280×960)/ 720P(1280×720)

Image Dynamic Detection

Each Screen can detect Multiple Detection Regions, 6 levels Sensitivity can be set( IPC Support Needed)

Image Playback

1/4/9/16CH Sync. Playback

Privacy Mask

Each Channel support 4 Privacy Mask Areas (need IPC support);

Recording Mode

Support Manual, Auto, Dynamic Detection, Alarm Trigger Recording Mode

Backup Mode

Support HDD, U Disk, USB Mobile HDD, USB Record, Network Storage and Backups (Partly need IPC support);

Operating Mode

Mouse,  Keyboard

Local Login

User Name / Password

Recording Storage

Local HDD, Remote Network Host

External Interface

Network Video Input

① 36×[3840*2160]+sub[960*576]+4Ref.+4Play

② 36×[2048*1536]+sub[960*576]+4Ref.+9Play

③ 36×[1920*1080]+sub[960*576]+4Ref.+16Play

Audio Input

1:1 Network Audio Input by Network Video Channel Number;

Video Output

1CH VGA + 1CH HDMI

Audio Output

1*RCA

Network Interface

1*RJ45

RS485 Interface

Full Duplex Standard RS485 Interface

USB Interface

1*USB3.0 Interface, 2*USB2.0 Interface

Alarm Input

4ch

Alarm Output

1ch

HDD

Interface

4*SATA

Max. Capacity

Each SATA Interface support Max. 6TB HDD;

Mobile Surveillance

Support

Power Supply

12V6A

Comsumption

≤25W(without HDD)

Working Temperature

-10℃~+55℃

Working Humidity

10%-90%

Dimension

Equipment:440mm×356mm×68.5mm,With Package: 460mm×135mm×560 mm

Weight(without HDD)

Net Weight:5.7Kg;with Package:6.9Kg

Carton

4pcs 1 carton。Dimension:480mm×560mm×575mm;  Weight:30Kg。

Installation

Desktop Installation,  Standard Rack Installation
