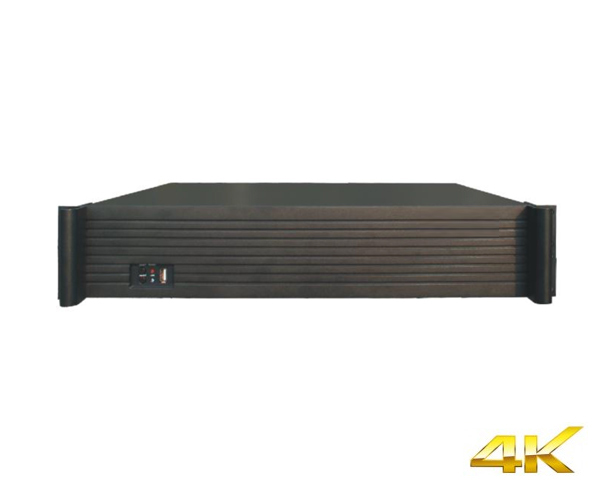

NVR-9136HGK/9164HGK
Embedded HD Network Video Recorder
● The Preview Screen can be changed at will, The Image Position changed, The Physical Address will not be changed;
● Support 15X Digital Enlarge, Dragging any Enlarged Image by Mouse(Preview/Playback);
● Support Instant Capture, and set a Separate-Area to save the Screenshot in the HDD;
● Recording Playback is shown by Time Bar, Different Colors displays Different Recording Type, Fast and Easy for checking the Recording;
● Support USB Disk Backup File Playback on Host Directly(Backup can be accurate to the seconds);
● HDD Sequence Writing Method, start writing Data from zero tracks, Enhance the Efficiency of HDD Read and Write;
● The Preview Screen can be changed at will, The Image Position changed, The Physical Address will not be changed;
● Support 15X Digital Enlarge, Dragging any Enlarged Image by Mouse(Preview/Playback);
● Support Instant Capture, and set a Separate-Area to save the Screenshot in the HDD;
● Recording Playback is shown by Time Bar, Different Colors displays Different Recording Type, Fast and Easy for checking the Recording;
● Support USB Disk Backup File Playback on Host Directly(Backup can be accurate to the seconds);
● HDD Sequence Writing Method, start writing Data from zero tracks, Enhance the Efficiency of HDD Read and Write;
SPECIFICATION
|
Model No. |
NVR-9136HGK |
NVR-9164HGK |
|
|
Operating System |
Embedded Linux Operating System |
||
|
mage Coding Control |
Image Coding Quality can be adjusted, VBR/ CBR Optional |
||
|
Dual Stream |
Each Channel can be set |
||
|
Video Standard |
H.265/ H.264 |
||
|
Image Quality |
4K(3840×2160)/5MP(2592×1944)/3MP(2048×1536)/1080P(1920×1080)/960P(1280×960)/720P(1280×720) |
||
|
Image Dynamic Detection |
Each Screen can detect Multiple Detection Regions, 6 levels Sensitivity can be set |
||
|
mage Playback |
1 1/4/9/16CH Sync. Playback |
1/4/9/16CH Sync. Playback |
|
|
Privacy Mask |
Each Channel support 4 Privacy Mask Areas (need IPC support); |
||
|
Recording Mode |
Support Manual, Auto, Dynamic Detection, Alarm Trigger Recording Mode |
||
|
Backup Mode |
Support Hard Disk, U Disk, USB Mobile Hard Disk, USB Record, Network Storage and Backups (Partly need IPC support); |
||
|
Operating Mode |
Mouse, Keyboard |
||
|
Local Login |
User Name / Password |
||
|
Recording Storage |
Local Hard Disk, Remote Network Host |
||
|
External Interface |
Network Video Input |
① 36×[3840*2160]+sub[960*576]+4Ref.+4Play |
① 64×[3840*2160]+sub[960*576]+4Ref.+4Play |
|
② 36×[2048*1944]+sub[960*576]+4Ref.+9Play |
② 64×[2048*1944]+sub[960*576]+4Ref.+9Play |
||
|
③ 36×[1920*1080]+sub[960*576]+4Ref.+16Play |
③ 64×[1920*1080]+sub[960*576]+4Ref.+16Play |
||
|
Audio Input |
1:1 Network Audio Input by Network Video Channel Number; |
||
|
Video Output |
1CH VGA + 1CH HDMI |
||
|
Audio Output |
1*RCA |
||
|
Network Interface |
1*RJ45 |
*RJ45 |
|
|
S485 Interface |
Full Duplex Standard RS485 Interface |
||
|
USB Interface |
1*USB3.0 Interface, 2*USB2.0 Interface |
||
|
Alarm Input |
4ch |
||
|
Alarm Output |
4ch |
||
|
Hard Disk |
Hard Disk Interface |
9*SATA+1*E-SATA |
|
|
Max. Capacity |
ach SATA Interface support Max. 6TB Hard Disk; |
||
|
Mobile Surveillance |
Support |
||
|
Power Supply |
ATX110-220V 200W 50-60Hz |
||
|
Comsumption |
≤30W（without HDD） |
||
|
Working Temperature |
-10℃～＋55℃ |
||
|
Working Humidity |
10％-90％ |
||
|
Dimension |
440mm×432mm×90mm, With Package： 539mm×550mm×225mm |
||
|
Weight(without HDD) |
Net Weight：7.4Kg；with Package：9.8Kg |
||
|
Carton |
2pcs 1 carton。Dimension：555mm×545mm×470mm；Weight：21 Kg。 |
||
|
Installation |
Desktop Installation, Standard Rack Installation |
||
